RiteFit Rails

Filters

Showing 1–16 of 26 results

Series

1-16 of 26 products

  • From: $59.30 inc. GST
    Quickview

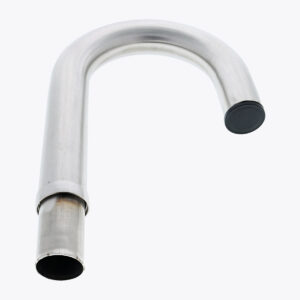

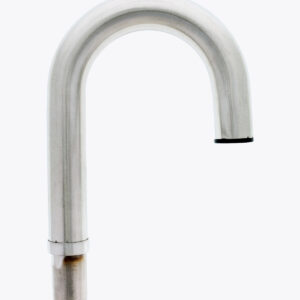

    RiteFit Rail 38mm Hook End

    , ,
    Designed to go at the end of a stair rail or ramp, this decorative and practical 180 degree hook comes in three lengths of 300mm, 600mm and 1900mm. It is swaged at one end and one dress ring is supplied with each size. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    From: $59.30 inc. GST
    From: $59.30 inc. GST
  • $64.85 inc. GST
    Quickview

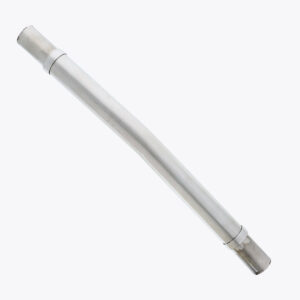

    RiteFit Rail 4 Degree Bend

    , ,
    Like the 32mm range, this model is 38mm in diameter and has a four degree kinked bend in the middle to allow a transfer passage on a ramp of 1:14. Measures 500mm in length and has a swaged component on each end. Dress rings are supplied to cover any joins in the fitted tube. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    $64.85 inc. GST
    $64.85 inc. GST
  • From: $40.77 inc. GST
    Quickview

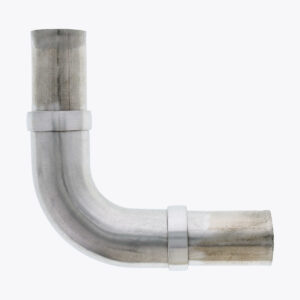

    RiteFit Rail 90 Degree Elbows

    , ,
    There are two models to choose from. The original 90 degree elbow, provided with two dress rings to cover the ends of the cut tube. The second model is the same angled bend but with a 300mm lead in, which ist often used to create distance from the fixing point and is useful when used from an upright position before transitioning to a descending rail. Swaged one end only and provided with one dress ring.
    From: $40.77 inc. GST
    From: $40.77 inc. GST
  • From: $53.74 inc. GST
    Quickview

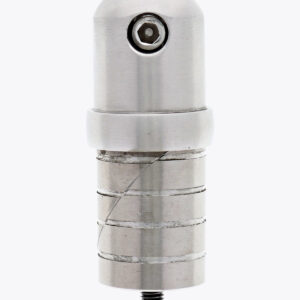

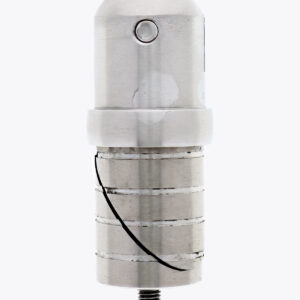

    RiteFit Rail Adaptors

    , , ,
    This product is the focal point of the range. Its title implies its role – a multi purpose adaptor. It gives the appearance of a half knuckle joint, and the top of the product has a slot down the centre, with a locating bolt. That locating bolt engages the appropriate connection to the lug of the product that it is being attached to, whether that lug belongs to a horizontal rail or a bracket. The bottom of the piece works along the lines of the “gooseneck” principle that is part of the system’s knuckle joint. Tighten the bottom half by using the in-built centre screw. The body has an in-built collar to cover any cut, whether fitting to a vertical or horizontal aspect. The top of the product also has a tightening screw that engages into the lug of the product it is being fitted to – whether the horizontal adaptor, horizontal plate, horizontal insert, architrave wall plate or mid rail series of products. Multi purpose indeed. As an alternative to the standard multi purpose adaptor, this fastener fix or glue in model is different in its fixing aspect only. The MPA-VLI-38 doesn’t have the patented split design securing of the standard model. Instead it has a solid piece the leg or tubing will slip on to. The leg or the tubing needs to be adhered or riveted to the locating end to secure it in place - very important! There is a built in collar to cover any unsightly cuts or marks. It secures in the same way its counterpart MPA-38 does, with a locating screw engaging the lug on the top of a leg or an architrave bracket or to the lug of a mid rail adaptor. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    From: $53.74 inc. GST
    From: $53.74 inc. GST
  • $37.06 inc. GST
    Quickview

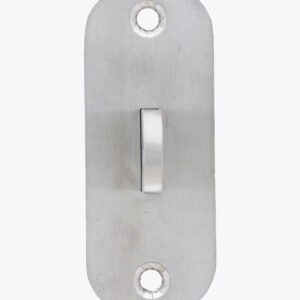

    RiteFit Rail Architrave Rail Bracket

    , , ,
    A stylish fixing bracket that can be used for brick or architrave fixing. Measures 100mm x 40mm with 6mm diameter countersunk screw holes, 80mm centre to centre (screws supplied). Has radiused edges for a trimmed look, that matches in with the curved look of accompanying products throughout the RiteFit range. The bracket engages into the multi purpose adaptor and allows either a straight or an angled connection from the fixing wall. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    $37.06 inc. GST
    $37.06 inc. GST
  • $9.26 inc. GST
    Quickview

    RiteFit Rail Dress Rings

    , ,
    The dress rings in 38mm are sold individually, as well as being supplied with the appropriate product. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    $9.26 inc. GST
    $9.26 inc. GST
  • From: $37.06 inc. GST
    Quickview

    RiteFit Rail Elbow Ends

    , , ,

    This flagship product of the 32mm modular range has been adapted to the 38mm series. It’s a standard elbow end but the 38mm model is packed and sold individually rather than in pairs due to it’s more limited need when creating these styles of rails and ramps. Made with a 75mm flange and cover plate, swaged on one end and provided with a dress ring.

    There is a second model available that is an extended version. This has been manufactured to allow a rail to comfortable pass a stormwater pipe or guttering that may be attached to the outside of a building. This model is 75mm longer than the standard one, making it 150mm from it’s fixing point.

    We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    From: $37.06 inc. GST
    From: $37.06 inc. GST
  • $14.82 inc. GST
    Quickview

    RiteFit Rail End Caps

    , ,
    The addition of these ends to a completed rail cannot be understated. The snug fit into the end of a 38mm tube provides a clean, professional finish. This solid stainless steel plug has a rubber locating, securing ring that can fit inside the tube without adhering. Alternatively, if it’s preferred to glue the end in, that too is an option. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    $14.82 inc. GST
    $14.82 inc. GST
  • From: $10.20 inc. GST
    Quickview

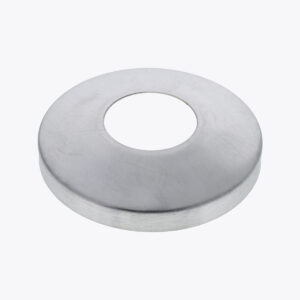

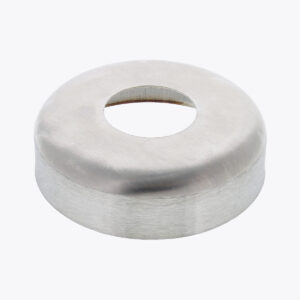

    RiteFit Rail Flange Covers

    , ,
    These covers fit snugly over the 6mm thick x 100mm wide flange that is standard for the vertical legs. Although the covers are provided with the standard model legs, there will be times where additional cover plates are needed, such as, for core drilled fixing legs (where the cover plates are not supplied). Overall height from the ground is 30mm and suits 38mm tubing with a 100mm diameter. As an optional extra, a selection of shallower cover plates exist job depending. These cover plates are a lower profile and are made to suit both the standard and offset vertical legs. They have a 100mm diameter, 19mm at the highest point and have a gentle sloping design dropping to 10mm at the lowest edge. Available in both the standard or offset hole design. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    From: $10.20 inc. GST
    From: $10.20 inc. GST
  • $27.79 inc. GST
    Quickview

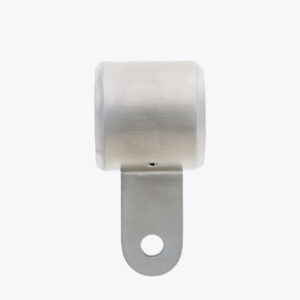

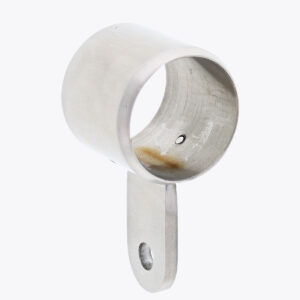

    RiteFit Rail Horizontal Rail Adaptors

    , , ,
    Made for a 38mm diameter tube, this product allows the tube to pass through it and is held in place by two grubs screws on either side of the underneath fixing lug. It then connects to the open slot section in the top of the multi purpose adaptor and is held in place by a tightened MPA-38 locating screw. It has bevelled edges on each side, allowing a smooth hand transition over the rail. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    $27.79 inc. GST
    $27.79 inc. GST
  • From: $51.88 inc. GST
    Quickview

    RiteFit Rail Insert Brackets

    , , ,
    Similar to the basic design of the ARP-38 but instead of having the lug beneath, this has an insert adaptor that fits inside the vertical leg and is held in place by an appropriate adhesive, rivet or screw. The rail fits on to an adjustable cupped bracket and once the desired angle has been achieved, there is a provision to lock off that angle on the stem of the support bracket by allen key fixing. It has two fixing holes on the diagonal axis. The initial streamlined model requires the rail to fit flush with the top of the insert adaptor.  An alternative product with a tube hiding collar is a recent addition and is available now.  The two products remain identical other than that feature.
    From: $51.88 inc. GST
    From: $51.88 inc. GST
  • $148.25 inc. GST
    Quickview

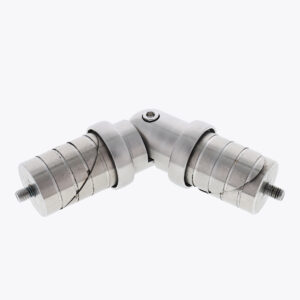

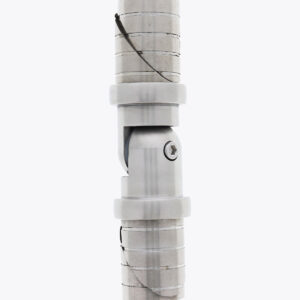

    RiteFit Rail Knuckle Joints

    , ,
    Constructed on the same principles as the 32mm version but in a 38mm size. One notable difference is the more streamlined design in the centre of the product, allowing a smoother travel of the hand across the body of the product. It still allows the installer to pick up angles up to 111 degrees whilst offering a less bulky appearance. It still has the “gooseneck” operational features and is tightened by an allen key once the desired angle has been found. It also has a built in collar to cover the cut of the tubing and keep a smooth hand transition, particularly for elderly users. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    $148.25 inc. GST
    $148.25 inc. GST
  • $44.47 inc. GST
    Quickview

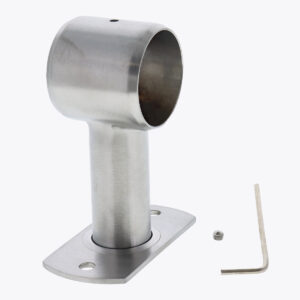

    RiteFit Rail Leg Support Bracket

    , , ,
    At times there is a need to have a wall support bracket, especially when nearby wall surface can be used. This bracket provides that, as an auxiliary support device if deemed necessary. It extends straight from the wall 95mm to the furthest edge of the bracket. The bracket slides over the 38mm leg and is supported by a locating grub screw securing to the leg. It’s fixing plate measures 75mm x 40mm, hole positions 57mm centre to centre, 6.5 mm diameter. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    $44.47 inc. GST
    $44.47 inc. GST
  • $68.56 inc. GST
    Quickview

    RiteFit Rail Leg Support Outrigger

    , , ,
    This brace is fitted on to the vertical leg and can provide a stabilising effect to the vertical post. The vertical post passes through the outrigger and is then secured to the ground by its 75mm diameter covered flange. The height of the outrigger is 600mm, this is to provide less movement on the vertical post. Additionally, a higher positioned brace is more noticeable to any occupant who may require extra support and will be less of a tripping hazard in those and other situations. A 4mm grub screw will tighten the outrigger to the post by tightening with the supplied hex key. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    $68.56 inc. GST
    $68.56 inc. GST
  • From: $25.94 inc. GST
    Quickview

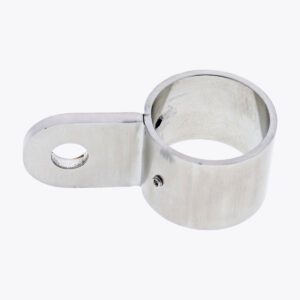

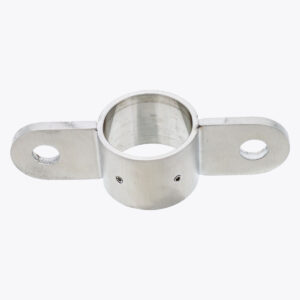

    RiteFit Rail Mid Rail Products

    , ,
    Many installs require a mid-rail element and our RiteFit Rail series has the rail and components to make this happen. By using the multi purpose adaptor into the tubing and connecting to the corresponding mid rail bracket, all scenarios can be achieved. All three mid rail adaptors are supplied with two grub screw locating fasteners. In most installs, they can away from view of the finished rail. Although these grub screws are a convenient and secure option, consideration needs to be given to the overall strength of that fixing, particularly if individuals may climb on to those mid rails. In that case, it is recommended that a rivet or screw fastening be an alternative fixing option. There are three mid rail bracket selections. A single ended bracket which can go on one side of a vertical post.   A double ended bracket which has a fitting on either side of the vertical post to allow a seamless continuation of the mid rail. Finally, a right angled bracket that will allow the installer to turn a mid-rail in a 90 degree direction. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    From: $25.94 inc. GST
    From: $25.94 inc. GST
  • $24.26 inc. GST
    Quickview

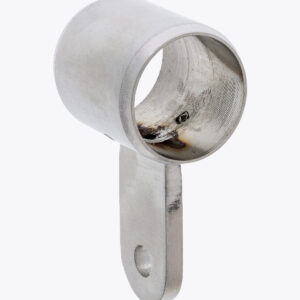

    RiteFit Rail Reducing Adaptor

    , ,
    This item is a reducing adaptor, built along the same lines as the HRA-38 but made for a 32mm tube. The idea comes from installers who want the additional strength of the 38mm system but are using 32mm tubing. It can be used in 32mm horizontal rail installs, (which has no vertical leg component) where a vertical leg is situationally required for the install but without losing the 32mm rail aspect. Some end users may not have the hand capacity or strength to utilize a 38mm rail system, situations like those are ideal for this product. Like it’s 38mm counterpart, this product is built exactly the same but the through hole size is reduced to accommodate 32mm tubing. It fits exactly the same way to the multi purpose adaptor as the 38mm model. It too has bevelled edges either side of the product, offering a smooth hand transition. Tightened to the tubing by the grub screw at the underneath front of the product. We highly recommend the RiteFit Rails 38mm range be installed by a licenced trade professional. Please contact us for your local trade professional.
    $24.26 inc. GST
    $24.26 inc. GST
